Re-routing the B36

Because of the high traffic load and the situation within the town it became necessary to relieve the municipalities Durmersheim and Bietigheim by building a bypass.

Aerial photograph of Durmersheim. Connection to existing B36. Facing north west.Photo montage of the Triftstraße overpass over the B36/NBS. Facing south.

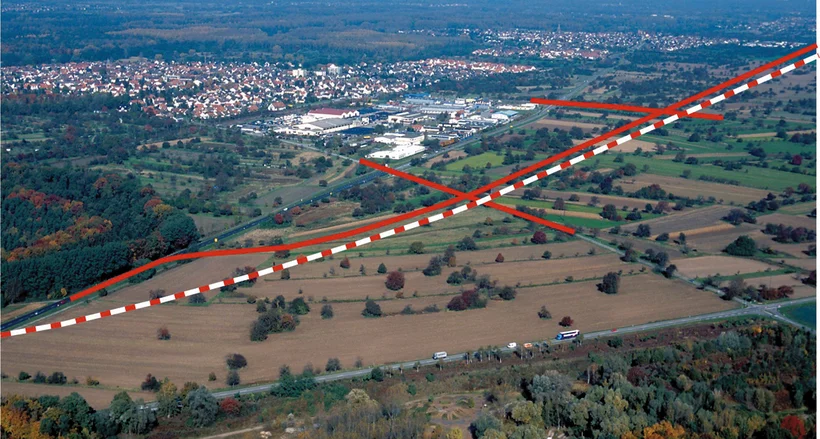

Aerial photograph of Durmersheim. Connection to existing B36. Facing north west.

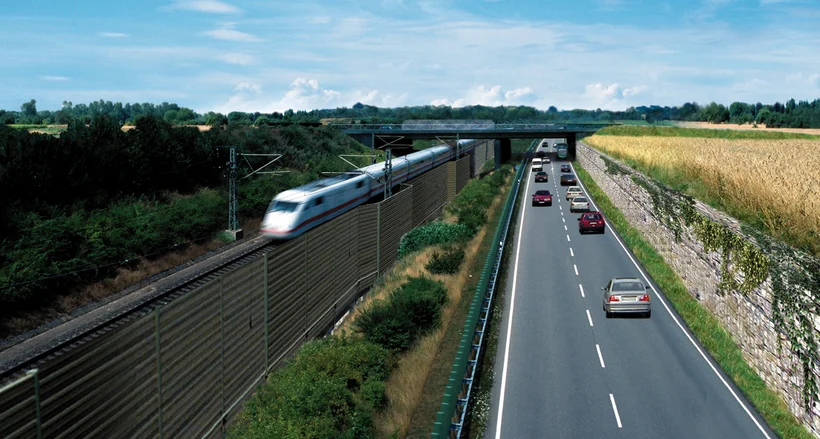

Photo montage of the Triftstraße overpass over the B36/NBS. Facing south.

joint-route

The new B36 bypass was planned and realized as a joint-route along with the extension/new route of the Deutschen Bahn AG (German Federal Railways). The inevitable environmental damage could therefore be reduced in comparison with independent routes.

One of the many strengths of CARD/1 is to integrate multiple planning areas. In the case of the joint-route planning where the dependencies between the new routes of the railway and the new national road had to be continuously checked, the system-wide data model clearly shows its advantage. This also applies to the drainage planning which is completely integrated into the project data.

Project facts:

  • Construction length of the continuous route: 9.7 km
  • Construction length of the crossing roads: 8 km Intersection points: 6 single level accesses to the crossing roads
  • Drainage system based on 5 seepage basins plus purification basins for rainwater with oil retention
  • Services: among others, design planning and execution planning of the traffic facilities; volumetric calculations
