Mega Project in Ivory Coast

Following years of bitter political crisis, Côte d‘Ivoire is now working to re-establish its political stability and economic pre-eminence in West Africa. Infrastructure in particular is to be upgraded in order to foster neighbouring and international trade. One such measure is to extend the existing A3 highway inland by 132km. The entire new section of road into the centre of the country was designed using CARD/1.

Toll booth at the motorway entry/exitTwo roundabouts as intersections, main carriageway underpassRoundabouts as a motorway junction, main carriageway overpassLocal feature: market place at the car park alongside the motorway incl. protection measures

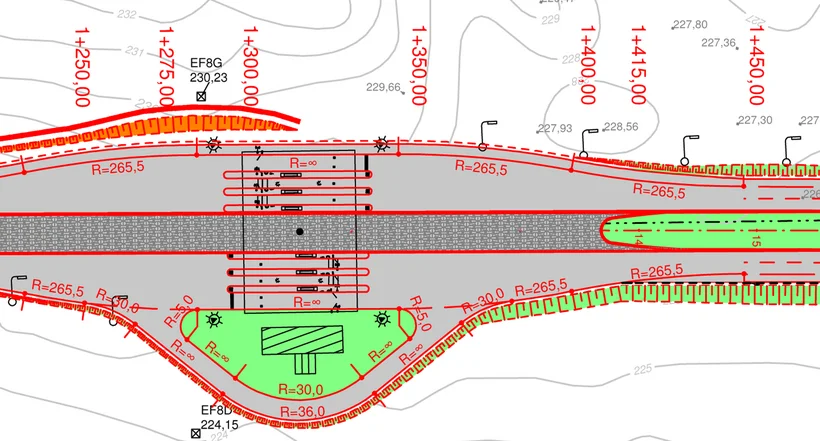

Toll booth at the motorway entry/exit

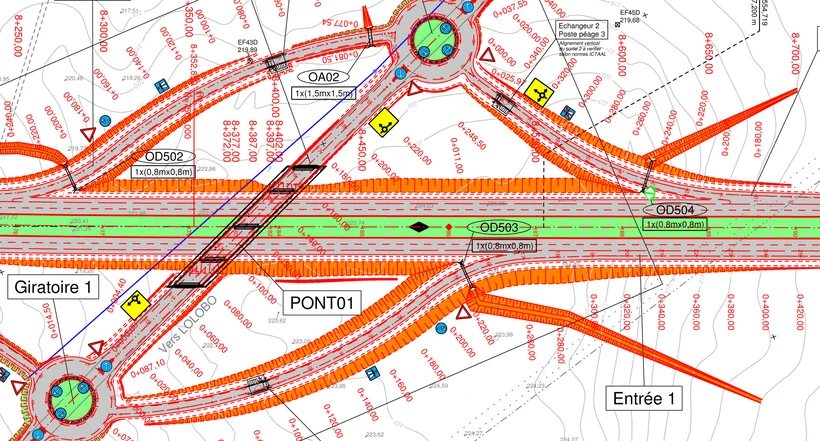

Two roundabouts as intersections, main carriageway underpass

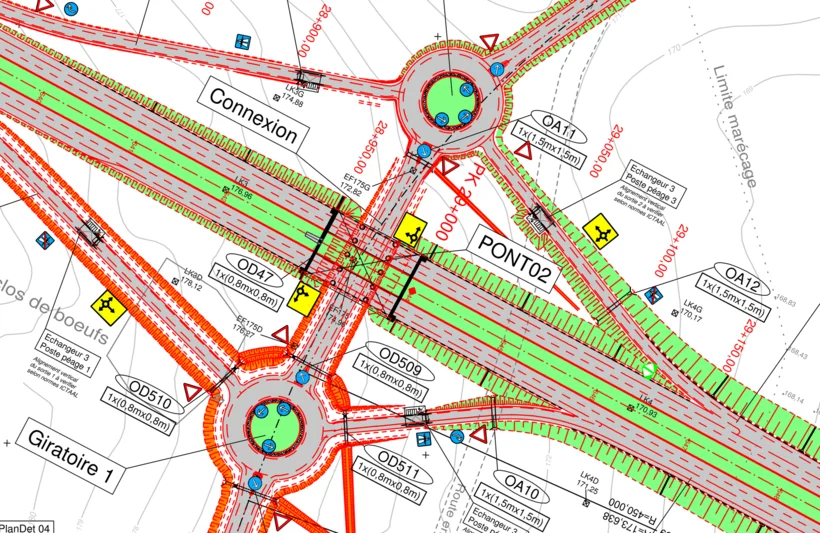

Roundabouts as a motorway junction, main carriageway overpass

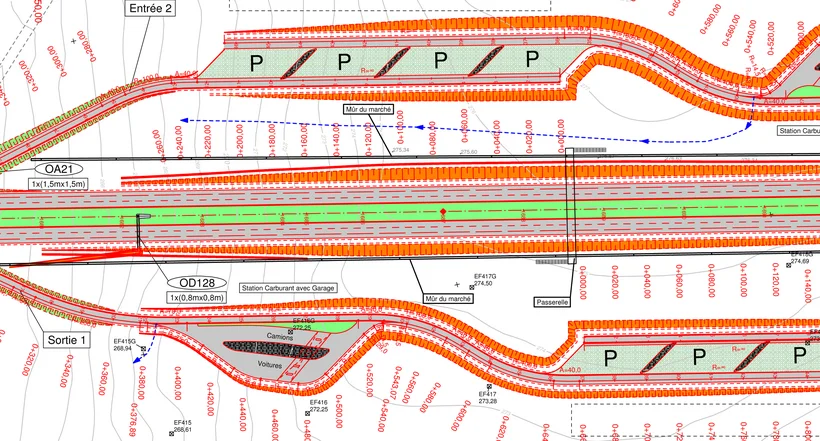

Local feature: market place at the car park alongside the motorway incl. protection measures

Within the framework of two national development programmes (National de Développement and Renaissance des Infrastructures en Côte d’Ivoire), Ivory Coast's government resolved to continue development on the A3 highway, which already links the southern economic metropolis of Abidjan  with the more northerly capital city Yamoussoukro. The new stretch of road is to go from the capital to Bouaké, the third largest city in the country. It lies in the middle of Ivory Coast and is within reach of Liberia and Guinea to the west, Mali and Burkina Faso to the north and Ghana in the east.

Ambitious Planning

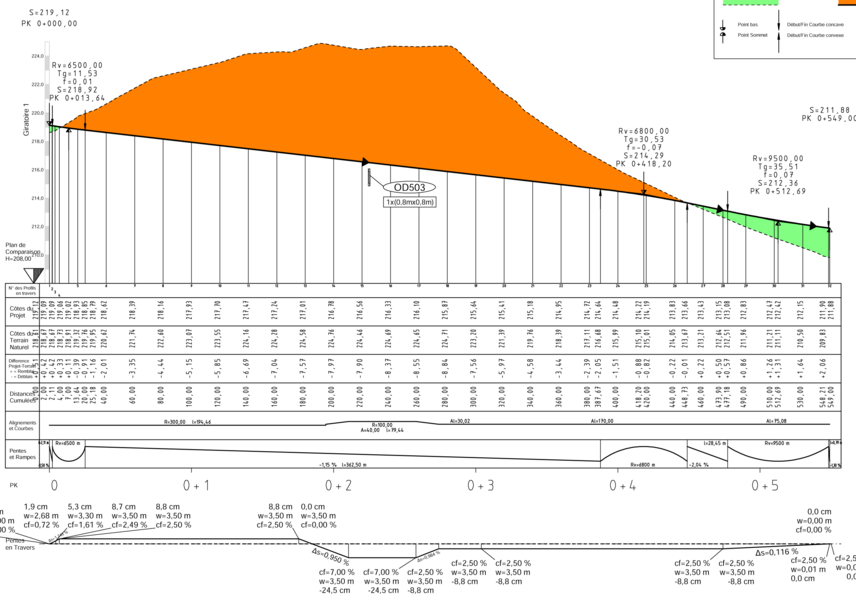

Elevation plan with traverse structure
Elevation plan with traverse structure

The West African Finance and Currency Union started by hiring H.P. Gauff Ingenieure GmbH & Co KG to conduct a feasibility study. Research to ascertain the best route produced three variations, each complete with full costing including pre-planning and final designs and the corresponding tender documents. In addition to the national highway a further 18.5km of  high-speed roadway connecting the highway to the city centres was planned. A two-lane carriageway in each direction was specified (expandable to three lanes) plus a median strip and hard shoulder. The planners had a tight 18 months to complete their designs.

Extensive Project

Once the pre-designs were ready, the project was split into two lots. Lot no.1 contained the first 30km of highway plus 6km of connecting/high-speed roadway while lot no.2 involved the remaining 86km of motorway and 11km of connecting road into Bouaké's city centre. Although the project was initially planned as a single unit, as things progressed the client requested the split as only one financial backer was found to finance 30km of new roadway.

Design Parameters

Planning proceeded according to the regulatory framework laid down by ICTAAL (Instruction sur les conditions techniques d’aménagement des autoroutes de liaison), the technical guidelines for motorway and overland roadway planning, and ICTAVRU (Instruction sur les conditions techniques d’aménagement des voies rapides urbaines), the regulations for heavily frequented urban areas.

Gigantic Project Scope

Large cut and fill volumes are an integral part of construction planning
Large cut and fill volumes are an integral part of construction planning
Interesting illustration of the ramp string, the crossfall and curvature
Interesting illustration of the ramp string, the crossfall and curvature
Roundabout elevation plan showing the earthworks
Roundabout elevation plan showing the earthworks
When in Rome ... road furniture and road markings á la Africa
When in Rome ... road furniture and road markings á la Africa
Compromise: traversing road cutting in
Compromise: traversing road cutting in

Lot no.1 contained:

  • 2 type 2 intersections (roundabouts)
  • 5 parks (market places)
  • 1 toll booth (2 large – 2 x 4 small booths at the entry/exits)
  • 3 underpasses
  • 5 pedestrian underpasses
  • 2 overpasses
  • 99 drainage structures
  • 8 emergency bays on both sides
  • 9 median strip crossings
  • 5 pedestrian bridges over the motorway
  • Signalling
  • Safety measures
  • Accompanying environmental measures
  • Familiarisation measures for "local residents to get used to the motorway"

Lot no. 2 contained:

  • 2 type 1 intersections (partial cloverleaf)
  • 1 type 2 intersection (roundabout)
  • 2 parks (market places), one with a petrol station
  • 1 toll booth (3 x 4 small booths at the entry/exits)
  • 8 underpasses
  • 10 pedestrian underpasses
  • 9 overpasses
  • 1 bridge over the "KAN" dam: 100m.
  • 250 drainage structures
  • 37 emergency bays on both sides
  • 30 median strip crossings
  • 4 pedestrian bridges over the motorway / high-speed roadways
  • Signalling
  • Safety measures
  • Accompanying environmental measures
  • Familiarisation measures for "local residents to get used to the motorway"

Conclusion

Despite the extremely tight deadline and the chaos of planning, the work was completed on time thanks to the surveying and design software CARD/1. Its flexibility was of particular value when adding and checking the numerous additional surveys necessary due to changes in design - right up to two weeks before the deadline. CARD/1's ability to generate the huge number of designs required also proved an enormous advantage. As was its ability to copy and move alignment groups when designing intersections and market places. These functions were vital to delivering the plans on time. The designs were submitted to the client as pdf or dwg files. The experts working for the local partner HydroCO, responsible for geology, hydraulics and construction, delivered the sketches, the planning was done with CARD/1.

Standard cross-sections of entries/exits
Standard cross-sections of entries/exits
Drawing of a traverse structure
Drawing of a traverse structure
Construction sketch of a median strip crossing with safety system
Construction sketch of a median strip crossing with safety system
